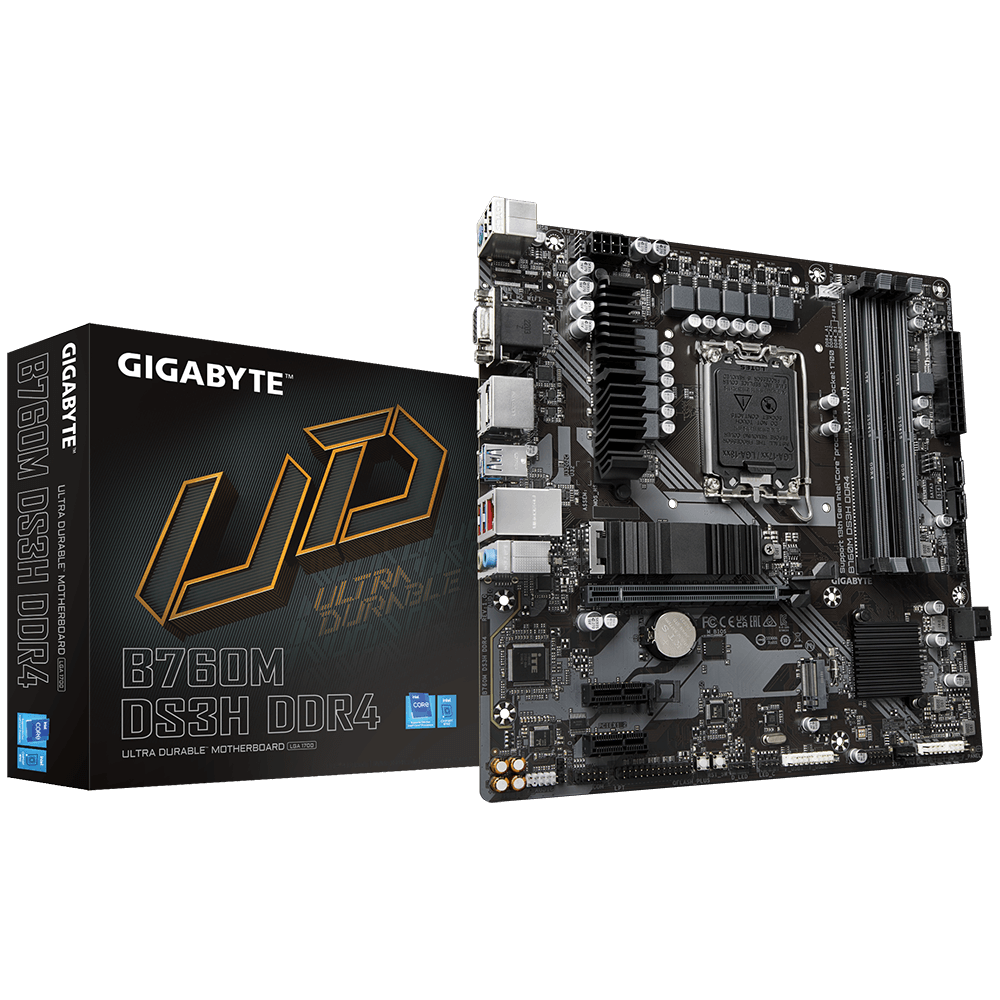

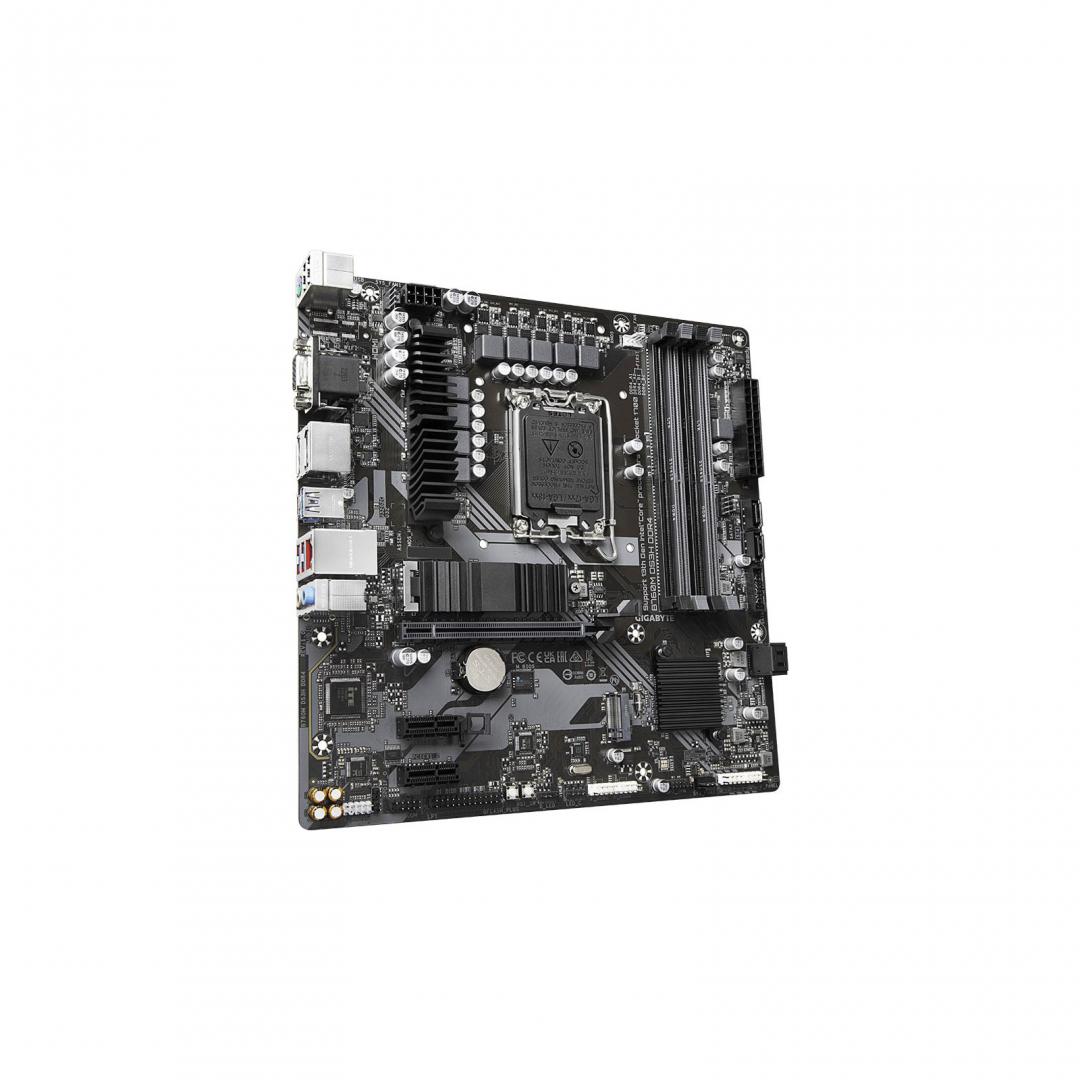

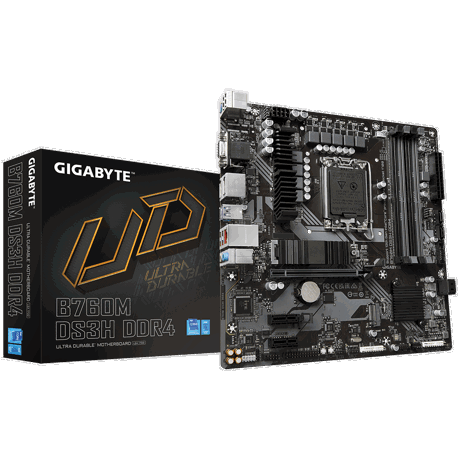

B760M DS3H DDR4 (rev. 1.0) LGA1700 4 x DDR4 DIMM sockets supporting up to 128 GB (32 GB single DIMM capacity) of system memory 1 x D-Sub port, supporting a maximum resolution of 1920x1200@60 Hz 1 x HDMI port, supporting a maximum resolution of 4096x2160@60 Hz * Support for HDMI 2.0 version and HDCP

B760M DS3H DDR4 (rev. 1.0) LGA1700 4 x DDR4 DIMM sockets supporting up to 128 GB (32 GB single DIMM capacity) of system memory 1 x D-Sub port, supporting a maximum resolution of 1920x1200@60 Hz 1 x HDMI port, supporting a maximum resolution of 4096x2160@60 Hz * Support for HDMI 2.0 version and HDCP 2.3. 1 x DisplayPort, supporting a maximum resolution of 4096x2304@60 Hz * Support for DisplayPort 1.2 version and HDCP 2.3 1 x DisplayPort, supporting a maximum resolution of 4096x2304@60 Hz * Support for DisplayPort 1.2 version. 1 x PCI Express x16 slot, supporting PCIe 4.0 and running at x16 2 x PCI Express x1 slots, supporting PCIe 3.0 and running at x1 https://www.gigabyte.com/Motherboard/B760M-DS3H-DDR4-rev-10/sp#sp

Form factor

micro-ATX

PCI

0

Slot PCI-Ex1

2

Slot PCI-Ex16

1

Slot RAM

4

Serial-or-Paralel

No/No

USB

4-8

Conectori SATA

6GB/s

Chipset

Intel

Slot M.2

2

RAM type

DDR4

Video output

HDMI, Display Port, D-Sub

Socket CPU

1700

Onboard-CPU

No
