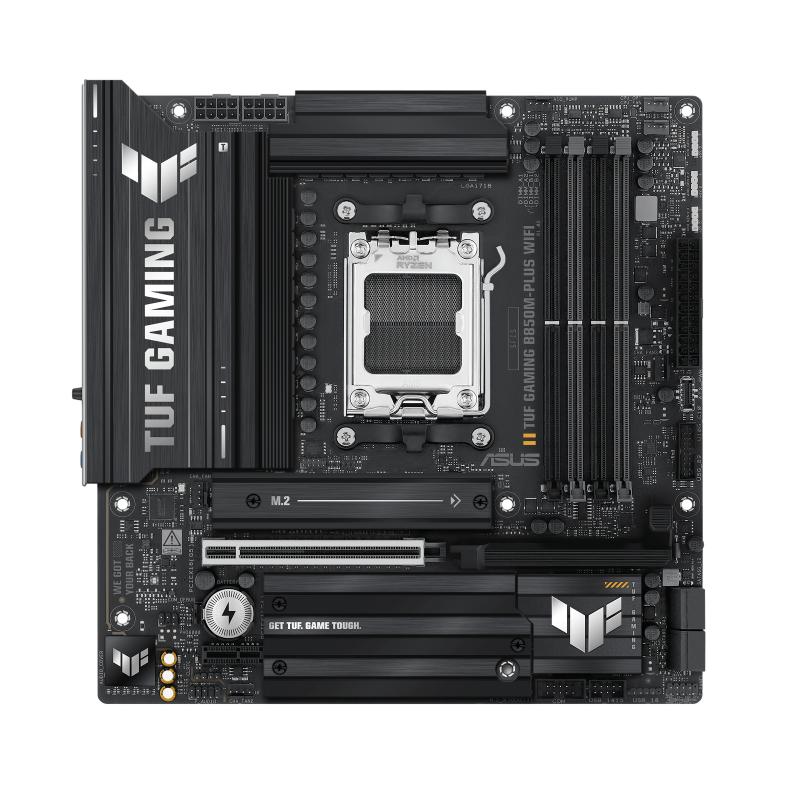

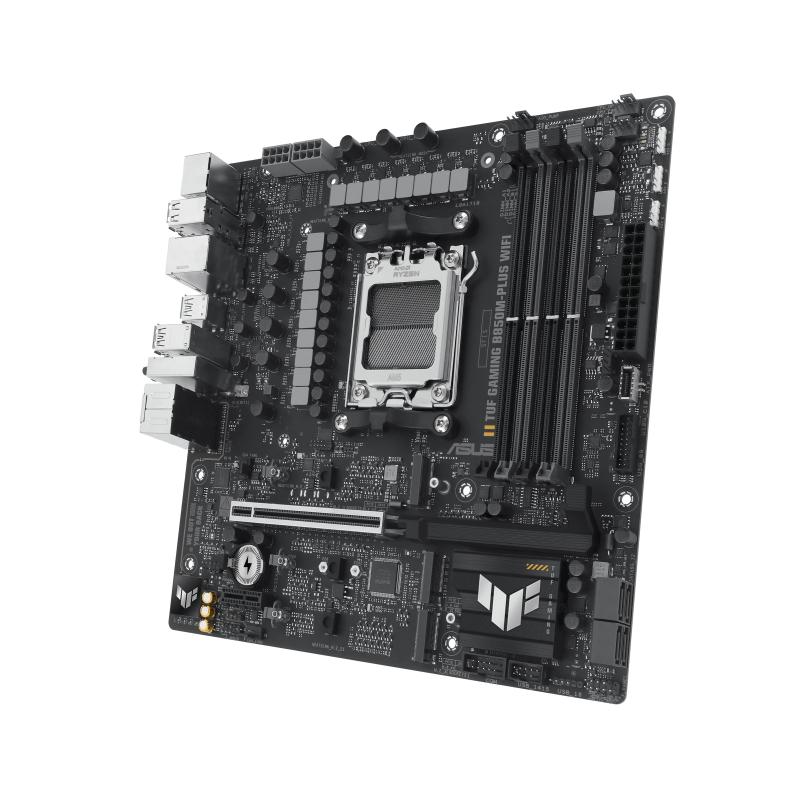

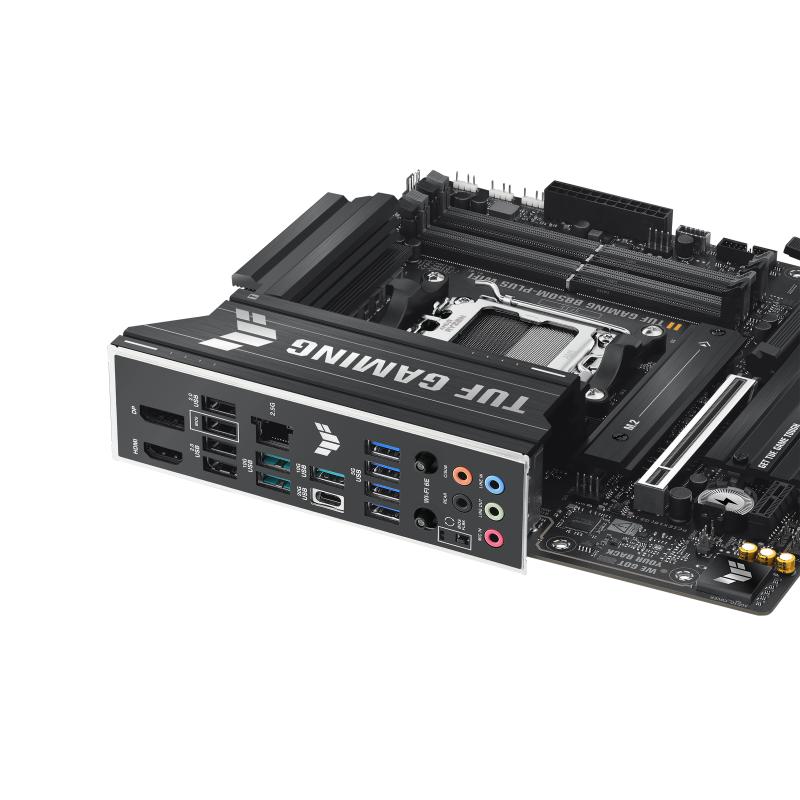

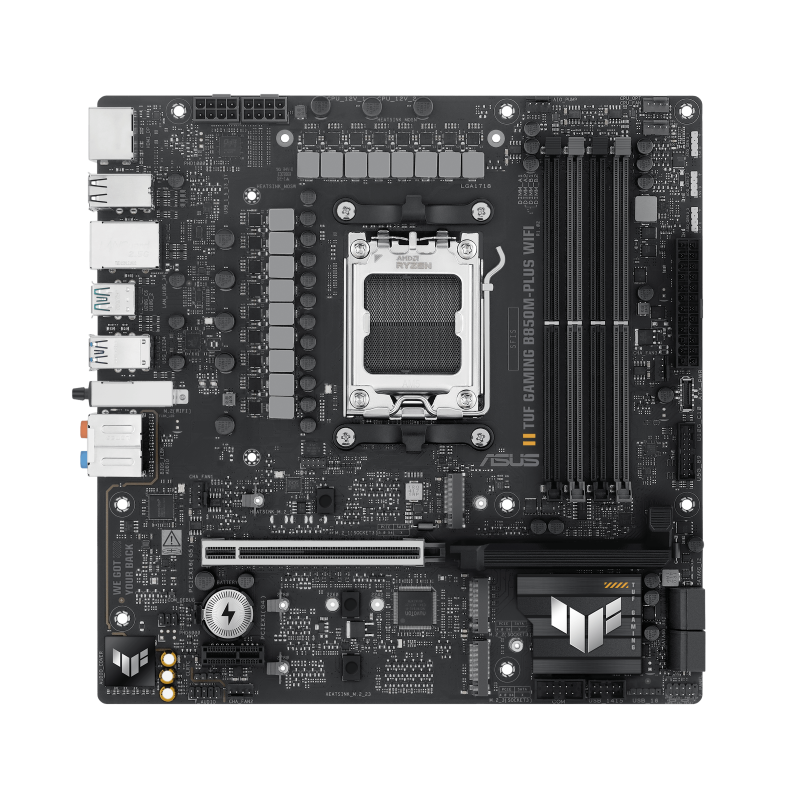

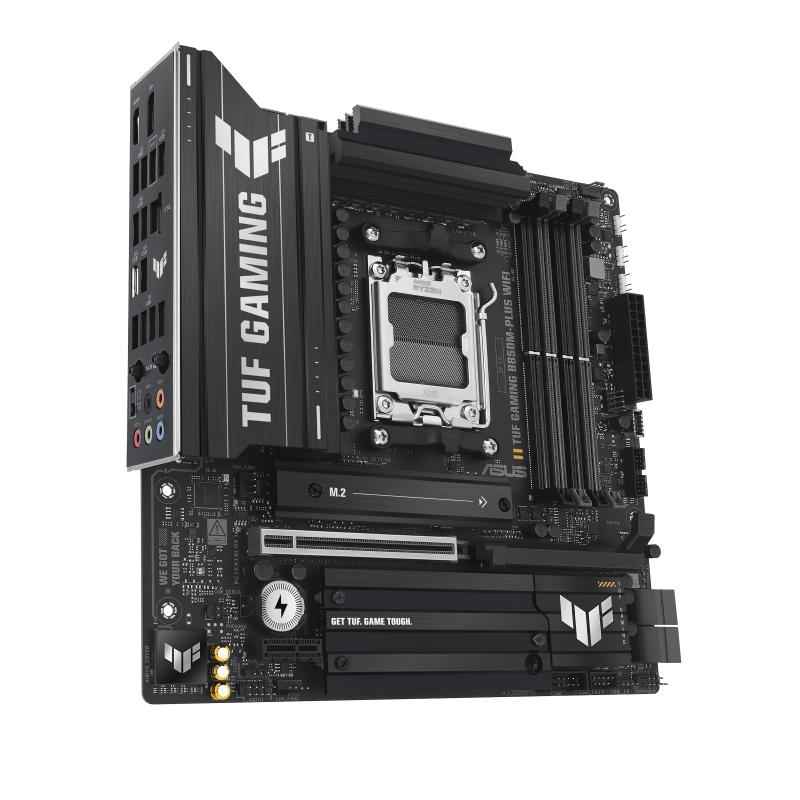

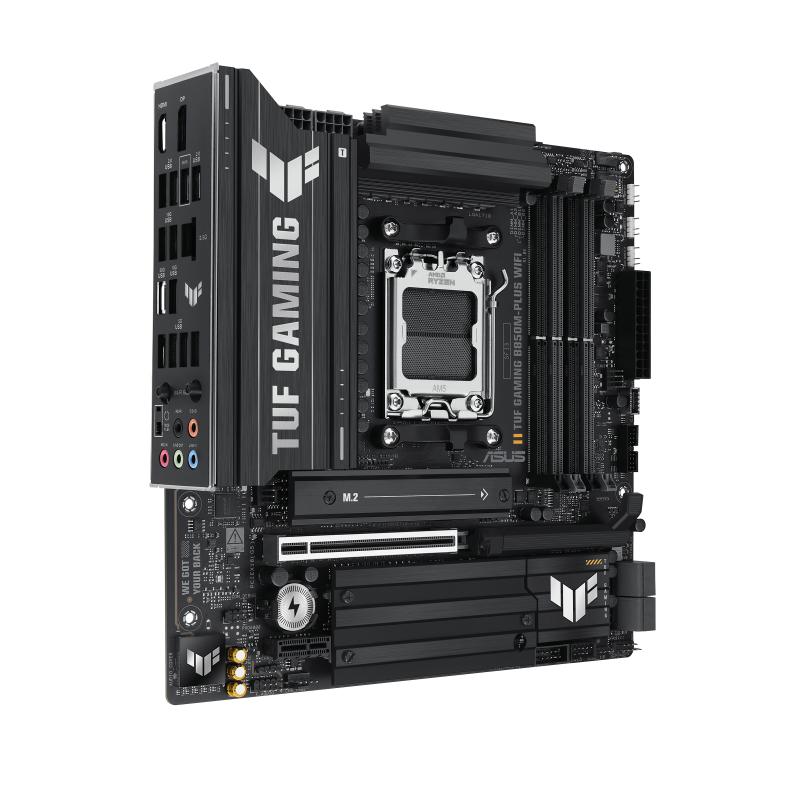

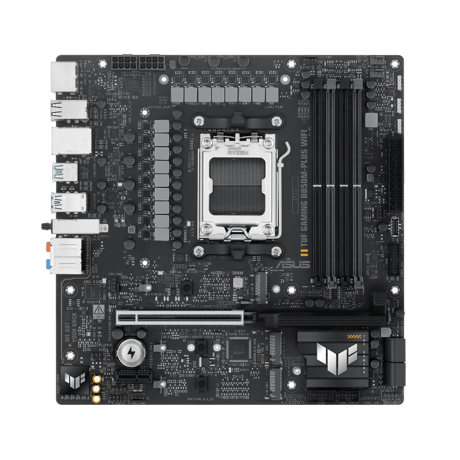

Placa de Baza ASUS TUF GAMING B850M-PLUS WIFI AM5, 4x DDR5, 1xDP 1x HDMI, 1x PCIE 5.0 x16 1x PCIE 4.0x16 1x PCIE 4.0 x1, 3x M.2, 4x SATA 6GB/s, mATX

Placa de Baza ASUS TUF GAMING B850M-PLUS WIFI AM5, 4x DDR5, 1xDP 1x HDMI, 1x PCIE 5.0 x16 1x PCIE 4.0x16 1x PCIE 4.0 x1, 3x M.2, 4x SATA 6GB/s, mATX

BIOS type

UEFI AMI

BIOS memory size

256 Mbit

Product colour

Black

PCI Express x16 (Gen 5.x) slots

1

PCI Express x16 (Gen 4.x) slots

1

Number of M.2 (M) slots

3

1st M.2 highest PCI Express generation

5.0

2nd M.2 highest PCI Express generation

4.0

3rd M.2 highest PCI Express generation

4.0

1st M.2 largest key size

2280

2nd M.2 largest key size

2280

3rd M.2 largest key size

2280

PCI Express x1 (Gen 4.x) slots

1

Motherboard chipset

AMD B850

Audio Chip

Realtek ALC1220P

Motherboard form factor

micro ATX

Motherboard chipset family

AMD

Audio output channels

7.1 channels

Windows operating systems supported

Windows 10 x64, Windows 11

Component for

PC

On-board graphics card

No

Parallel processing technology support

Not supported

USB 2.0 connectors

2

USB 3.2 Gen 1 (3.1 Gen 1) connectors

1

Number of SATA III connectors

4

Number of SATA II connectors

0

Number of SATA connectors

0

Front panel audio connector

Yes

ATX Power connector (24-pin)

Yes

CPU fan connector

Yes

USB 3.2 Gen 2 (3.1 Gen 2) connectors

1

Front panel connector

Yes

Number of chassis fan connectors

3

12V power connector

Yes

S/PDIF out connector

Yes

Number of COM connectors

1

Chassis intrusion connector

Yes

Supported memory types

DDR5-SDRAM

ECC сompatibility

ECC & Non-ECC

Number of memory slots

4

Memory slots type

DIMM

Unbuffered memory

Yes

Maximum internal memory

192 GB

Memory channels

Dual-channel

BLUETOOTH

Yes

Top Wi-Fi standard

Wi-Fi 6E (802.11ax)

Ethernet LAN

Yes

Wi-Fi

Yes

Wi-Fi standards

Wi-Fi 6E (802.11ax)

Bluetooth version

5.3

Ethernet interface type

2.5 Gigabit Ethernet

mSATA ports quantity

0

Weight

1.2 kg

Antenna included

Yes

Screws included

Yes

Cables included

SATA

Package width

275 mm

Package height

67.5 mm

Package depth

275 mm

Package weight

1.68 kg

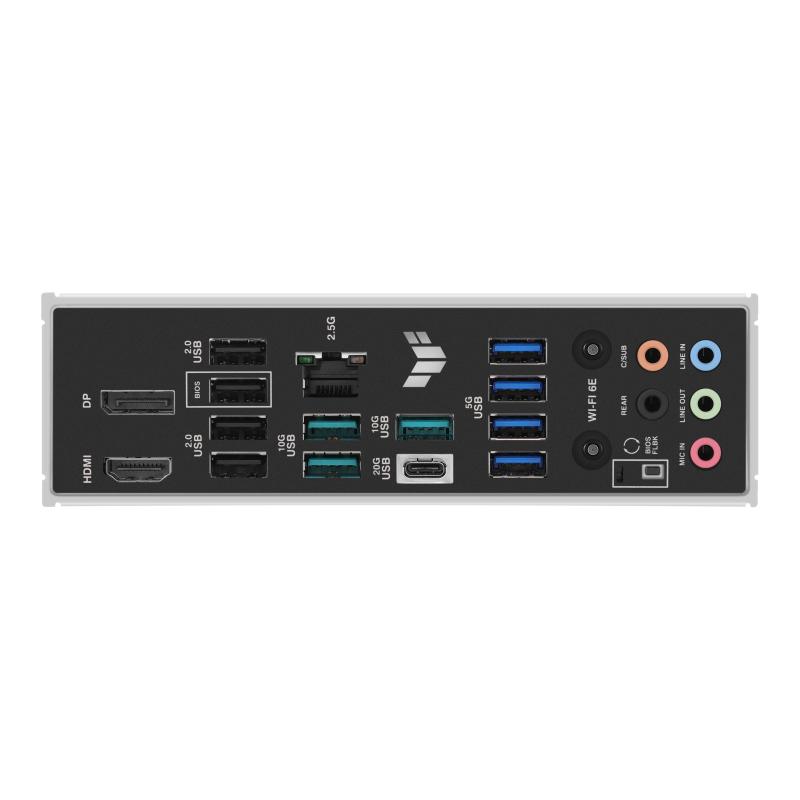

DVI-D ports quantity

0

DisplayPorts quantity

1

HDMI ports quantity

1

Processor manufacturer

AMD

Processor socket

Socket AM5

Supported processor sockets

Socket AM5

Compatible processor series

AMD Ryzen 7000 Series, AMD Ryzen 8000 Series, AMD Ryzen 9000 Series

WiFi-AP antenna jack

1

VGA (D-Sub) ports quantity

0

USB 3.2 Gen 2x2 Type-C ports quantity

1

USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity

0

USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity

0

USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity

3

USB 2.0 ports quantity

4

USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity

4

Ethernet LAN (RJ-45) ports

1

RAID support

Yes

Supported storage drive types

HDD & SSD

Supported storage drive interfaces

M.2, SATA III

Number of HDDs supported

4

Number of storage drives supported

7

RAID levels

0, 1, 5, 10

Width

244 mm

Depth

244 mm

Onboard-CPU

No

PCI

0

Serial-or-Paralel

No/No
