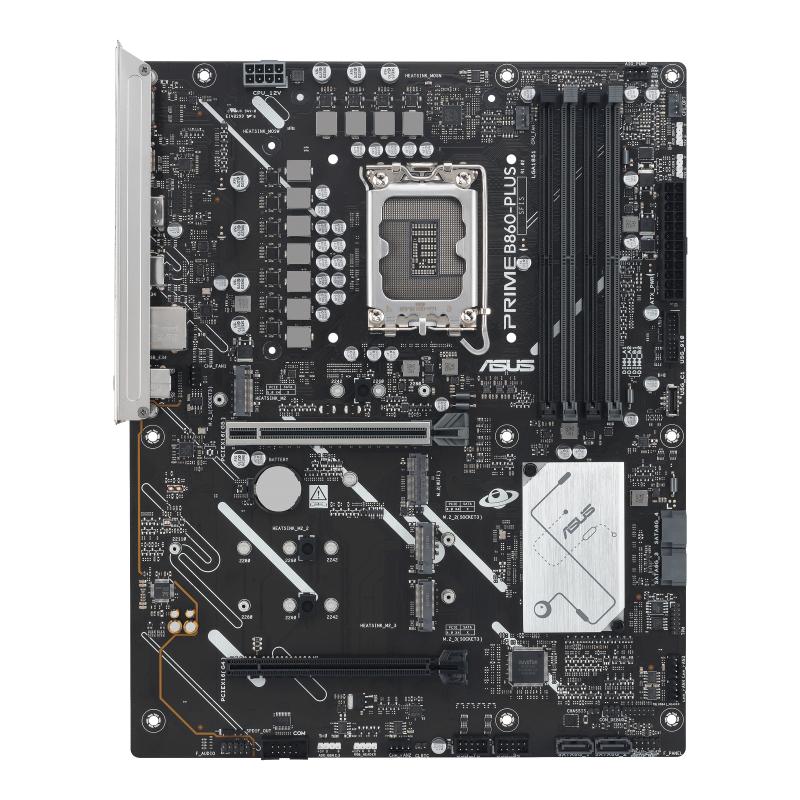

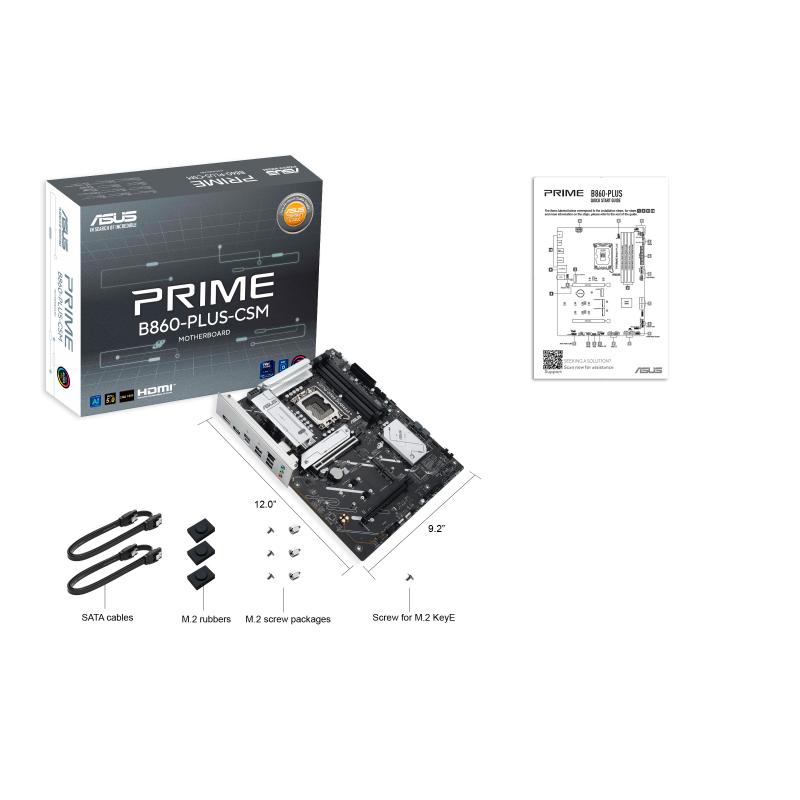

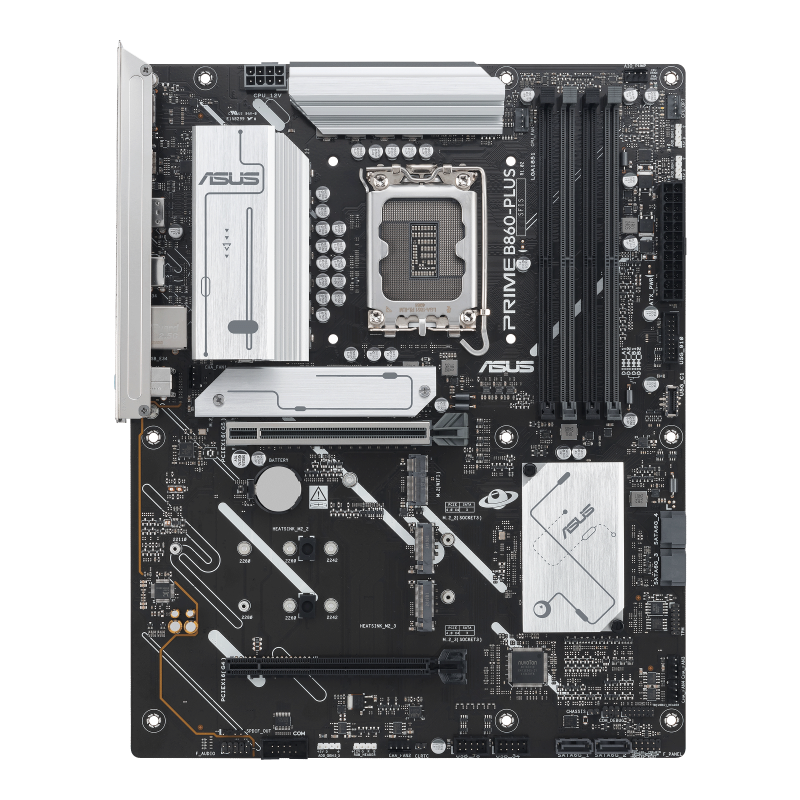

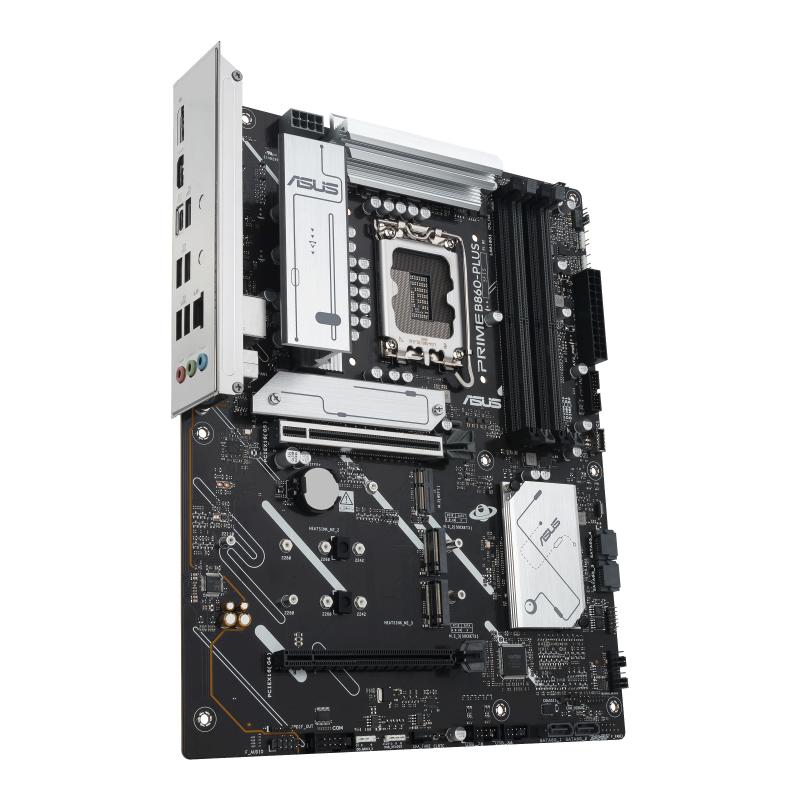

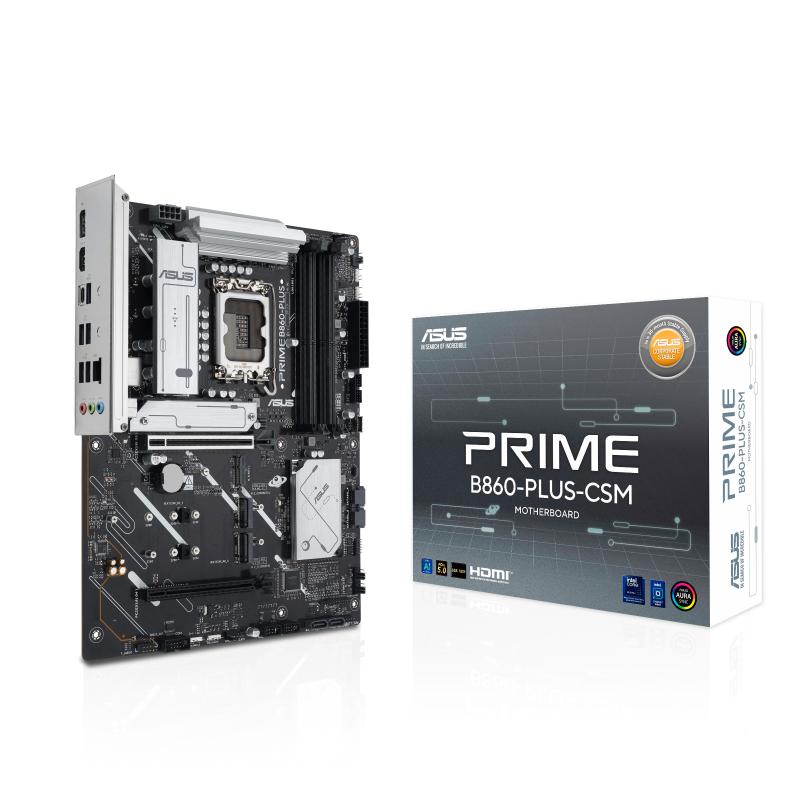

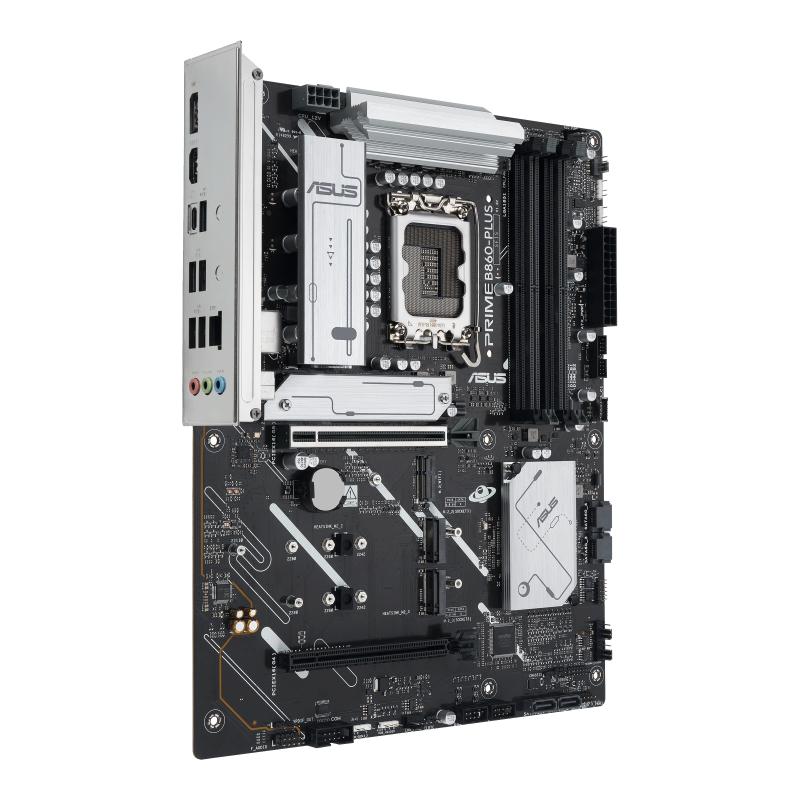

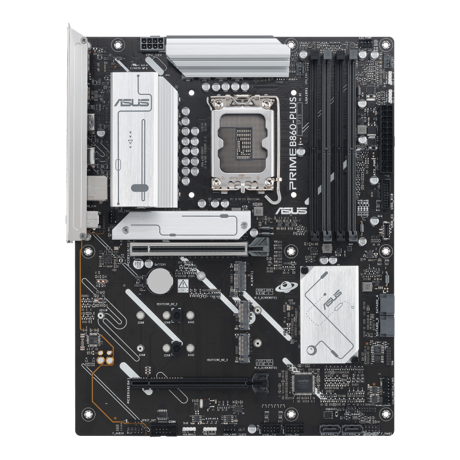

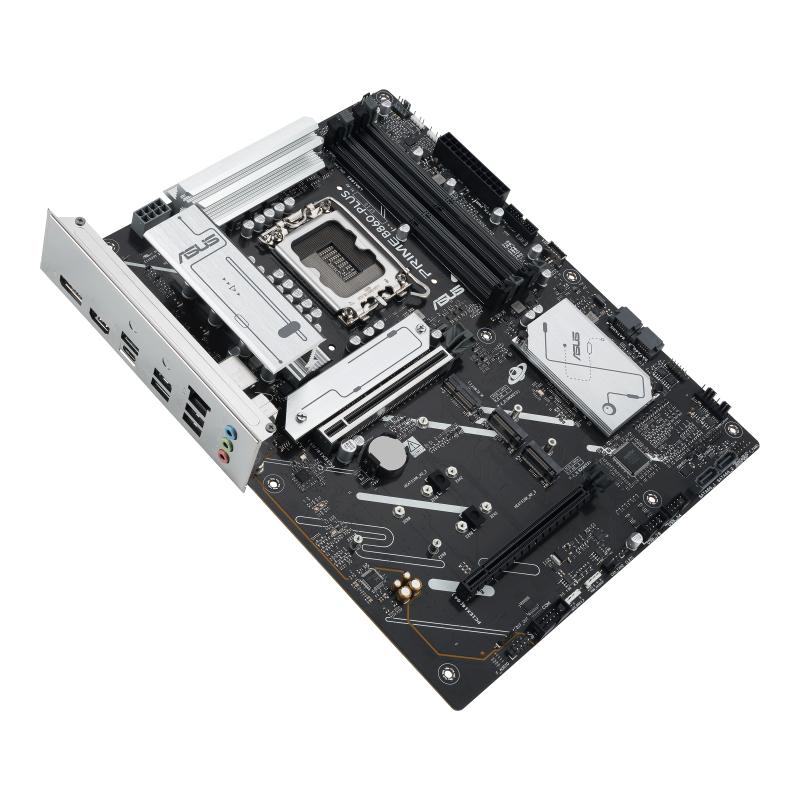

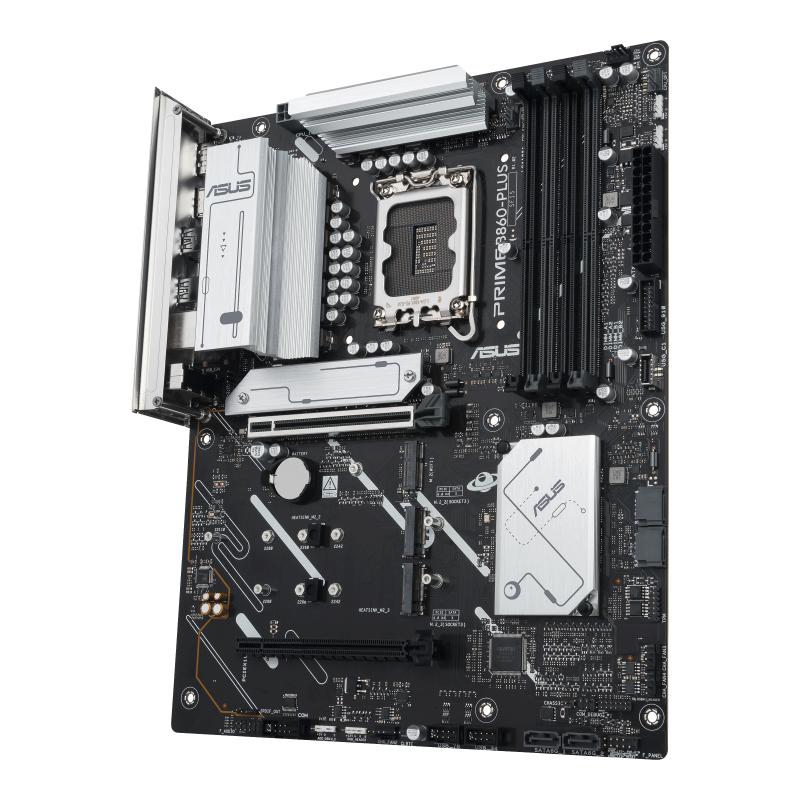

Placa de Baza ASUS PRIME B860-PLUS-CSM LGA1851, 4x DDR5, 1x DP 1x HDMI, 1x PCIE 5.0 x16 1x PCIE 4.0 x16, 3x M.2, 4x SATA 6GB/s, ATX

Placa de Baza ASUS PRIME B860-PLUS-CSM LGA1851, 4x DDR5, 1x DP 1x HDMI, 1x PCIE 5.0 x16 1x PCIE 4.0 x16, 3x M.2, 4x SATA 6GB/s, ATX

BIOS type

UEFI AMI

BIOS memory size

256 Mbit

Product colour

Multicolour

PCI Express x16 (Gen 4.x) slots

1

Number of M.2 (M) slots

3

Motherboard form factor

ATX

Motherboard chipset family

Intel

Motherboard chipset

Intel B860

Audio output channels

7.1 channels

Windows operating systems supported

Windows 10 x64, Windows 11

Component for

PC

Parallel processing technology support

Not supported

12V power connector

Yes

S/PDIF out connector

Yes

Number of COM connectors

1

USB 3.2 Gen 1 (3.1 Gen 1) connectors

2

Thunderbolt headers

1

Chassis intrusion connector

Yes

Number of CPU fan connectors

1

USB 2.0 connectors

2

USB 3.2 Gen 2 (3.1 Gen 2) connectors

0

Number of SATA III connectors

4

Front panel audio connector

Yes

ATX Power connector (24-pin)

Yes

CPU fan connector

Yes

EPS power connector (8-pin)

Yes

Number of chassis fan connectors

4

TPM connector

Yes

RGB LED pin header

Yes

Supported memory types

DDR5-SDRAM

Maximum internal memory

256 GB

Supported memory clock speed (max)

8666 MHz

ECC сompatibility

Non-ECC

Number of memory slots

4

Memory slots type

DIMM

Unbuffered memory

Yes

Memory channels

Dual-channel

Ethernet LAN

Yes

Wi-Fi

No

Ethernet interface type

2.5 Gigabit Ethernet

Weight

896 g

Package width

377 mm

Package depth

372 mm

Package height

302 mm

Package weight

1.56 kg

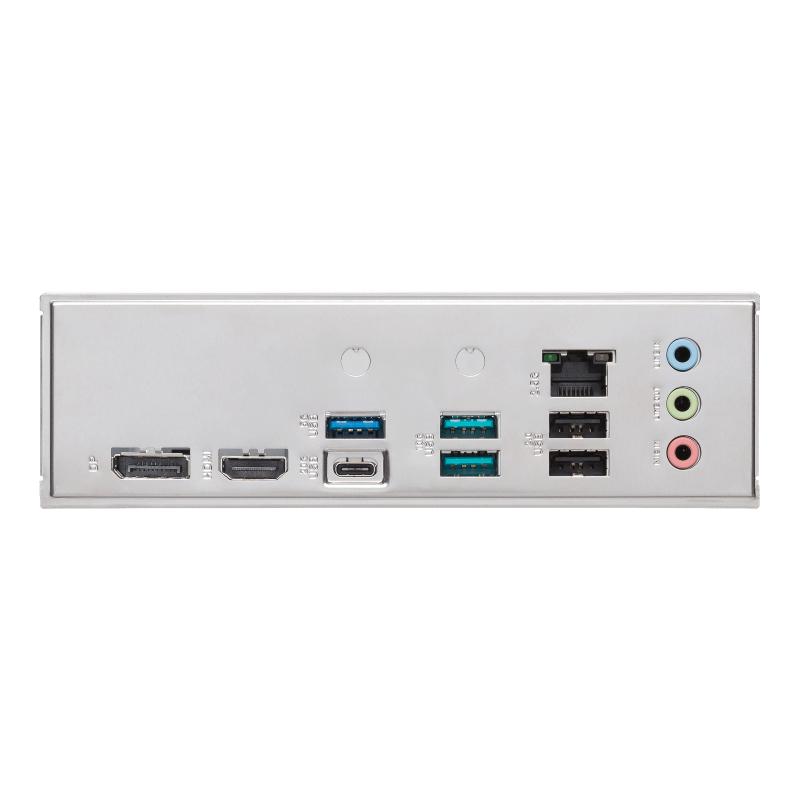

DVI-D ports quantity

0

HDMI ports quantity

1

DisplayPorts quantity

1

Processor manufacturer

Intel

Processor socket

LGA 1851 (Socket V1)

Compatible processor series

Intel Core Ultra (Series 2)

Ethernet LAN (RJ-45) ports

1

Microphone in

Yes

USB 2.0 ports quantity

2

USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity

1

VGA (D-Sub) ports quantity

0

Line-in

Yes

USB 3.2 Gen 2x2 Type-C ports quantity

1

USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity

2

USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity

0

USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity

0

Supported storage drive types

HDD & SSD

Supported storage drive interfaces

M.2, SATA III

RAID support

Yes

Number of HDDs supported

4

Number of storage drives supported

7

RAID levels

0, 1, 5, 10

Height

49 mm

Width

305 mm

Depth

244 mm

Onboard-CPU

No

PCI

0

Serial-or-Paralel

No/No
