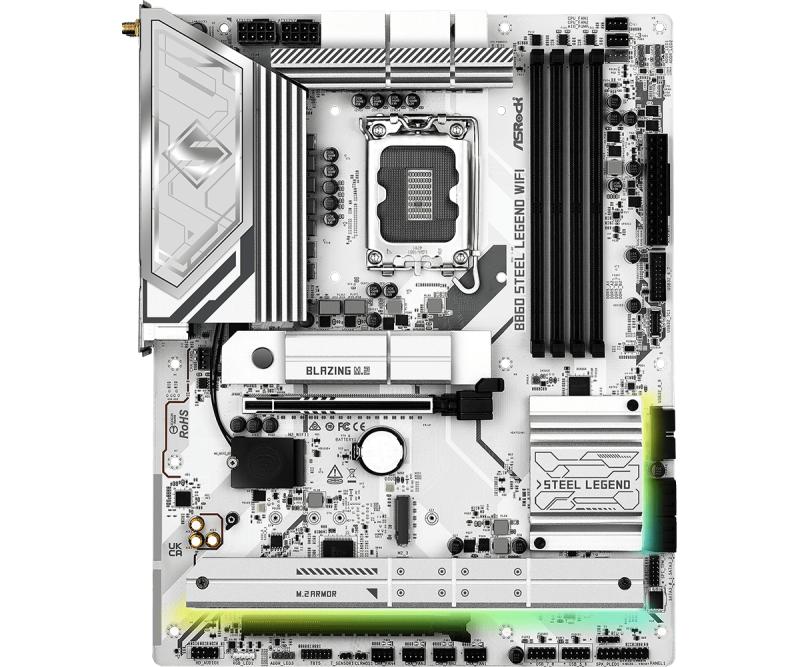

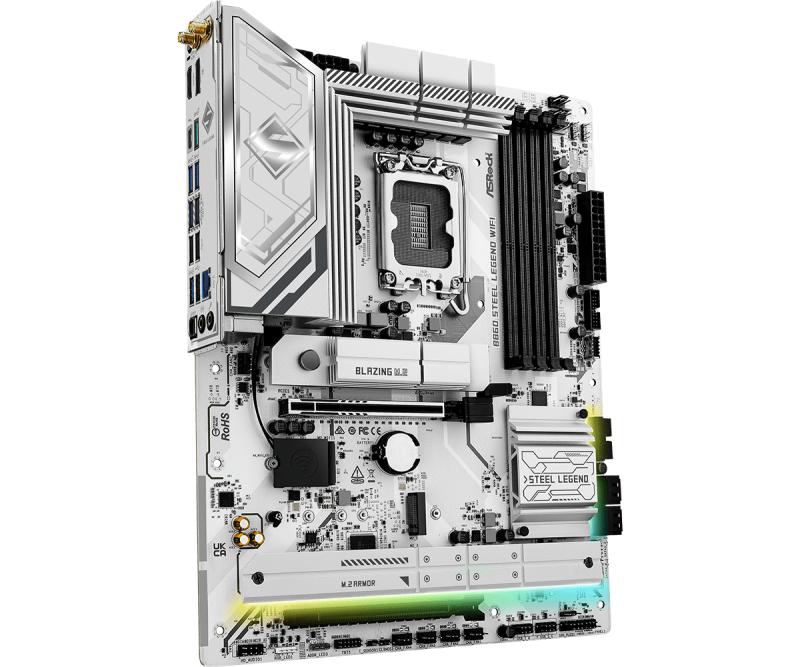

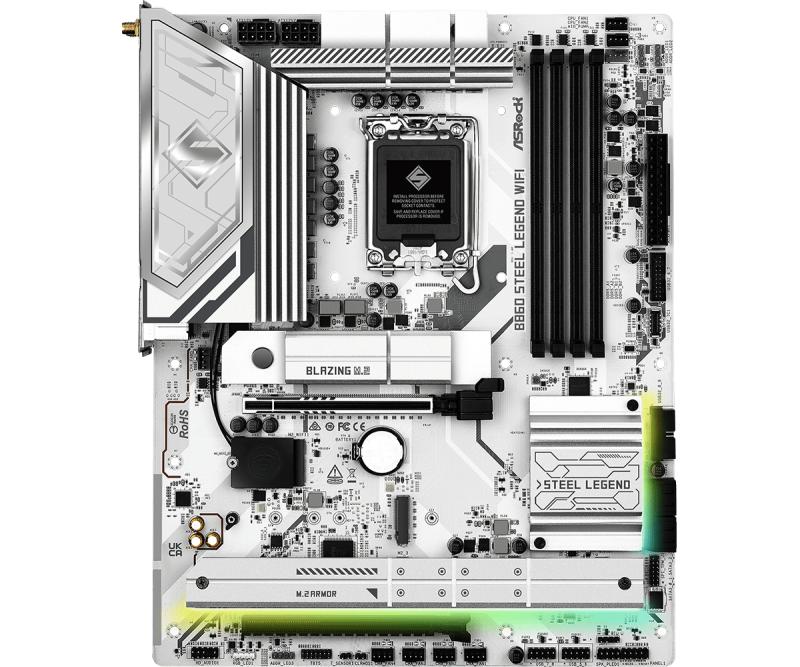

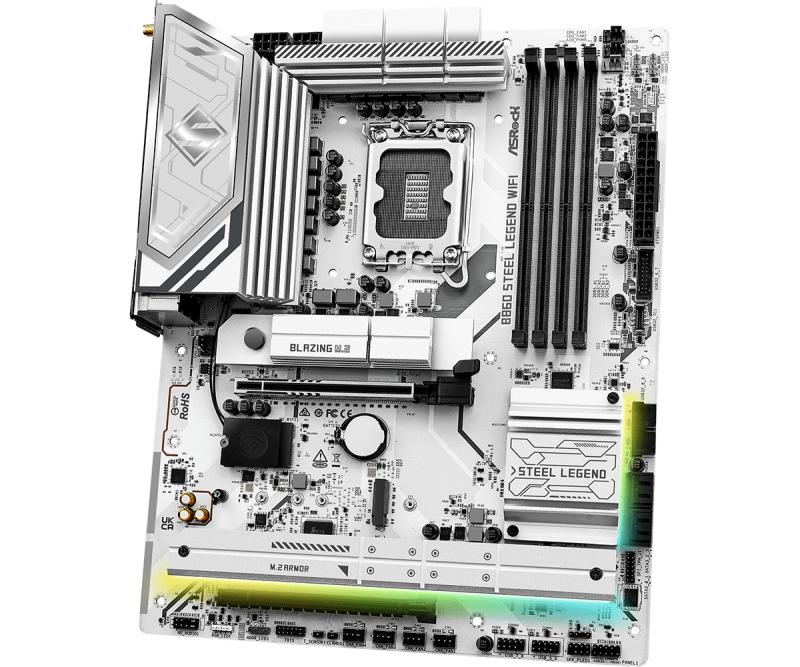

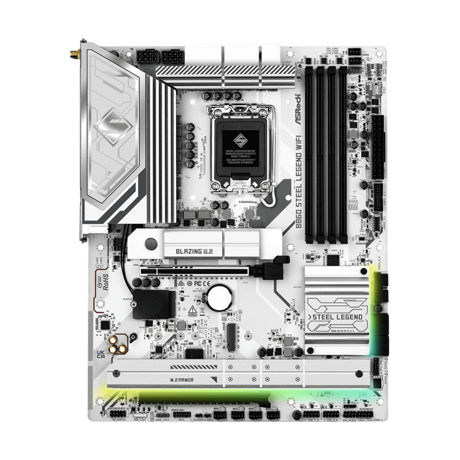

Placa de Baza ASROCK B860 STEEL LEGEND WIFI LGA1851, 4x DDR5, 1x HDMI 1x DP 1x Intel Thunderbolt, 1x PCIE 5.0 x16 1x PCIE 4.0 x16, 5x M.2, 4x SATA 6GB/s, ATX

Placa de Baza ASROCK B860 STEEL LEGEND WIFI LGA1851, 4x DDR5, 1x HDMI 1x DP 1x Intel Thunderbolt, 1x PCIE 5.0 x16 1x PCIE 4.0 x16, 5x M.2, 4x SATA 6GB/s, ATX

BIOS type

UEFI AMI

BIOS memory size

256 Mbit

Product colour

White

PCI Express x16 (Gen 5.x) slots

1

PCI Express x16 (Gen 4.x) slots

1

1st M.2 highest PCI Express generation

5.0

2nd M.2 highest PCI Express generation

4.0

3rd M.2 highest PCI Express generation

4.0

1st M.2 largest key size

2280

2nd M.2 largest key size

2280

3rd M.2 largest key size

2280

4th M.2 largest key size

2280

4th M.2 highest PCI Express generation

4.0

Number of M.2 (M) slots

4

Certification

FCC, CE, ErP/EuP

Audio Chip

Realtek ALC1220

Audio output channels

7.1 channels

Component for

PC

Motherboard form factor

ATX

Motherboard chipset family

Intel

Motherboard chipset

Intel B860

Windows operating systems supported

Windows 11 x64

HDCP

Yes

Maximum resolution

7680 x 4320 pixels

Parallel processing technology support

Not supported

USB 2.0 connectors

2

USB 3.2 Gen 2 (3.1 Gen 2) connectors

0

Number of SATA III connectors

4

Front panel audio connector

Yes

ATX Power connector (24-pin)

Yes

CPU fan connector

Yes

EPS power connector (8-pin)

Yes

Number of CPU fan connectors

2

Number of EPS power connectors (8-pin)

2

TPM connector

Yes

RGB LED pin header

Yes

Number of water pump connectors

1

USB 3.2 Gen 2x2 connectors

1

12V power connector

Yes

USB 3.2 Gen 1 (3.1 Gen 1) connectors

2

Number of chassis fan connectors

5

Number of RGB LED pin headers

1

ECC сompatibility

Non-ECC

Supported memory types

DDR5-SDRAM

Maximum internal memory

256 GB

Number of memory slots

4

Memory slots type

DIMM

Unbuffered memory

Yes

Memory channels

Dual-channel

BLUETOOTH

Yes

Top Wi-Fi standard

Wi-Fi 6E (802.11ax)

Ethernet LAN

Yes

Wi-Fi

Yes

Bluetooth version

5.3

Ethernet interface type

2.5 Gigabit Ethernet

LAN controller

Dragon RTL8125BG

Cables included

SATA

Antenna included

Yes

DVI-D ports quantity

0

DisplayPorts quantity

1

HDMI version

2.1

DisplayPort version

1.4

HDMI ports quantity

1

Processor manufacturer

Intel

Processor socket

LGA 1851 (Socket V1)

Supported processor sockets

LGA 1851

Compatible processor series

Intel Core Ultra (Series 2)

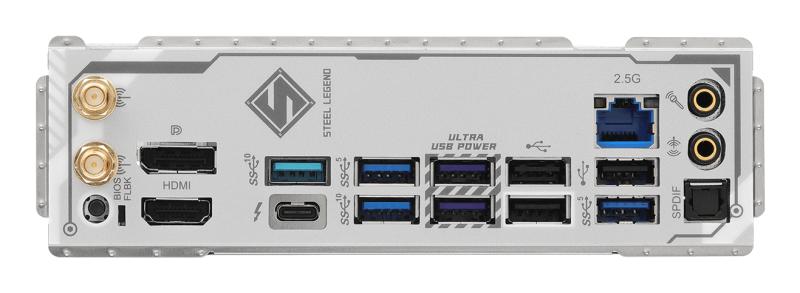

Thunderbolt ports quantity

1

WiFi-AP antenna jack

2

S/PDIF out port

Yes

VGA (D-Sub) ports quantity

0

Headphone outputs

1

Microphone in

Yes

USB 2.0 ports quantity

3

USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity

2

USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity

0

USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity

0

USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity

4

Ethernet LAN (RJ-45) ports

1

USB connector type

USB Type-A, USB Type-C

Supported storage drive types

HDD & SSD

RAID support

Yes

RAID levels

0, 1, 5, 10

Number of storage drives supported

8

Supported storage drive interfaces

PCI Express 4.0, PCI Express 5.0, SATA III

Width

305 mm

Depth

244 mm

Onboard-CPU

No

PCI

0

Serial-or-Paralel

No/No
