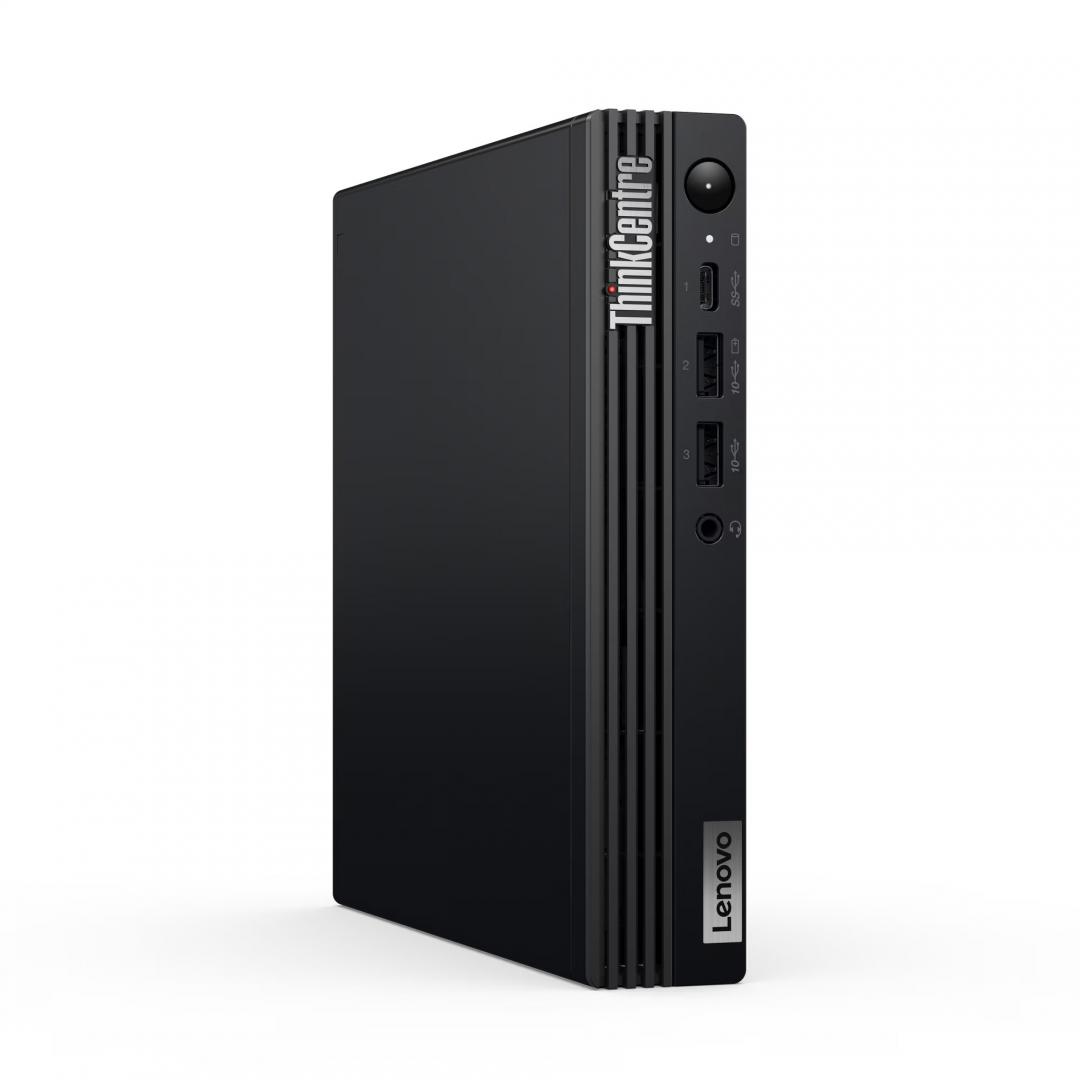

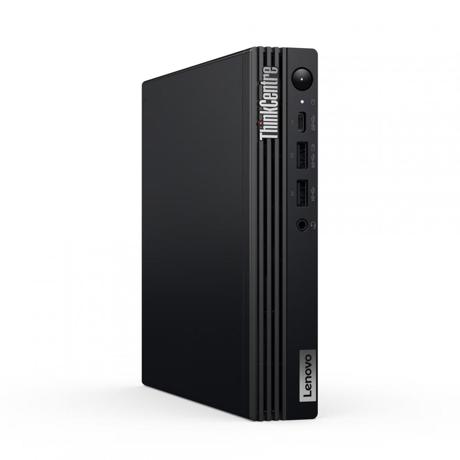

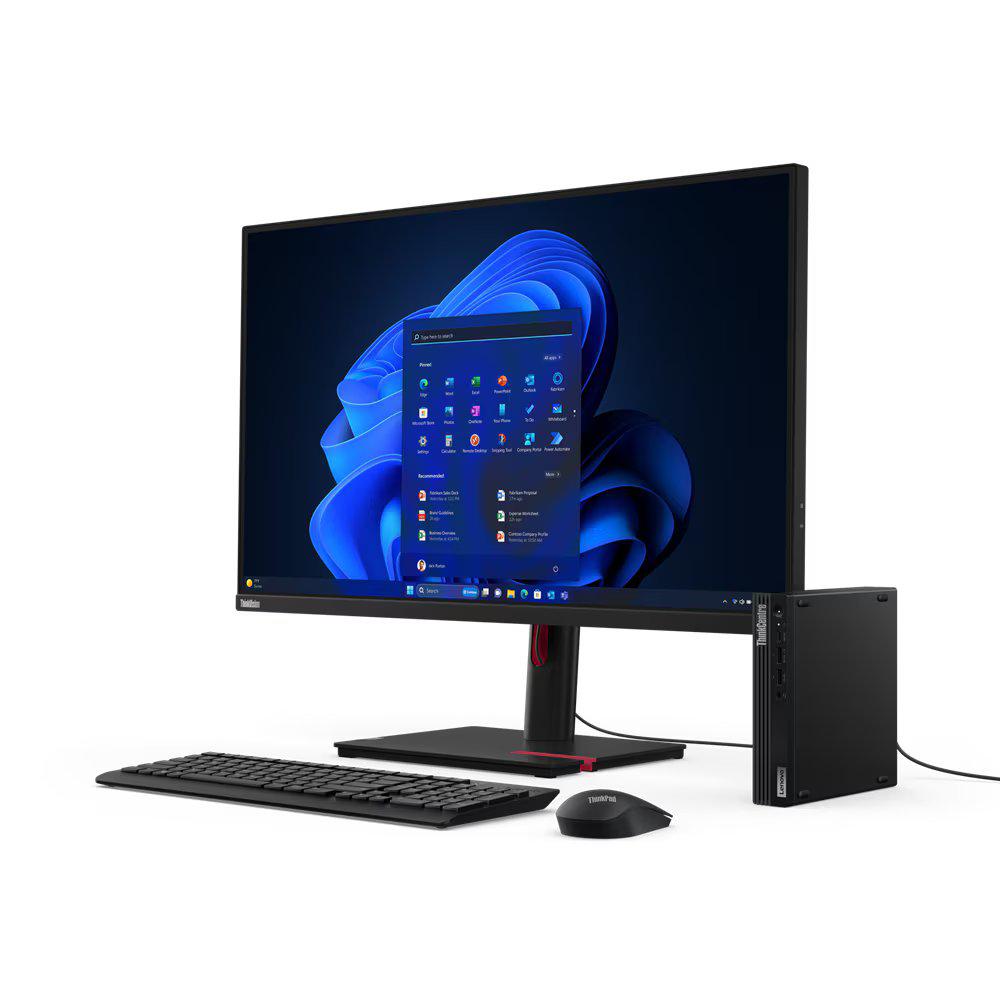

Desktop Lenovo ThinkCentre M70q Gen 5 Tiny, Intel® Core™ i5-14400T, RAM 1x 16GB SO-DIMM DDR5-4800, 512GB SSD M.2 2280 PCIe® 4.0x4 NVMe® Opal, Video: Integrated Intel® UHD Graphics 730, Optic: None, Card reader: No card reader, 3YO

Desktop Lenovo ThinkCentre M70q Gen 5 Tiny, Intel® Core™ i5-14400T, 10C (6P + 4E) / 16T, P-core 1.5 / 4.5GHz, E-core 1.1 / 3.2GHz, 20MB, RAM 1x 16GB SO-DIMM DDR5-4800, SSD 512GB SSD M.2 2280 PCIe® 4.0x4 NVMe® Opal, Video: Integrated Intel® UHD Graphics 730, Optic: None, Card reader: No card reader, Integrated 100/1000M, WLAN: Intel® Wi-Fi® 6E AX211, 802.11ax 2x2, Bluethooth: BT5.3, vPro®, Rear Ports : 1x USB-A (Hi-Speed USB / USB 2.0), 1x USB-A (USB 5Gbps / USB 3.2 Gen 1), 2x USB-A (USB 10Gbps / USB 3.2 Gen 2), 1x HDMI® 2.1 TMDS, 1x DisplayPort™ 1.4a (HBR2, DSC), 1x Ethernet (RJ-45), Front Ports: 1x USB-C® (USB 5Gbps / USB 3.2 Gen 1), with [email protected] charging, 1x USB-A (USB 10Gbps / USB 3.2 Gen 2), with Always On and [email protected] charging, 1x USB-A (USB 10Gbps / USB 3.2 Gen 2), 1x headphone / microphone combo jack (3.5mm), Source: 90W 89% Adapter, USB Traditional Keyboard, Black, English (EU), USB Calliope Mouse, Black, 2Wx1, Camera: , Color: Black, Weight Around 1.25 kg, Dimensions 179 x 182.9 x 36.5 mm, Warranty: 1-year, Onsite, 3Y Onsite upgrade from 1Y Onsite, 1Y Premier Support TC DT/AIO Mainstream/Halo WHB (CPN), OS: None

Bundled Accessories

None

Green Certifications

ENERGY STAR® 8.0

Ethernet

Integrated 100/1000M

Keyboard

USB Traditional Keyboard, Black, English (EU)

Dust Filter

None

IO Box

No IO box

WLAN + Bluetooth

Intel® Wi-Fi® 6E AX211, 802.11ax 2x2 + BT5.3, vPro®

Mil-Spec Test

MIL-STD-810H military test passed (Low Pressure [Altitude], High Temperature, Low Temperature, Temperature Shock, Humidity, Sand and Dust, Vibration, Shock, Solar Radiation, Contamination by Fluids, Salt Fog)

Memory

1x 16GB SO-DIMM DDR5-4800

Card Reader

No card reader

Case Color

Black

Weight

Around 1.25 kg (2.76 lbs)

Kensington Cable Lock

None

Graphics

Integrated Intel® UHD Graphics 730

Stand

None

Optional Rear Ports (configured)

None

Fingerprint reader

No fingerprint reader

Chassis Intrusion Switch

Chassis Intrusion Switch

Speakers

2Wx1

Adapter Cage

None

Toolless Chassis Screw

Toolless Chassis Screw

Form factor

Tiny (1L)

Optional Front Ports (configured)

None

Chipset

Intel® Q670 Chipset

Pen

Pen Not Supported

WWAN

Non-WWAN

Power Supply

90W 89% Adapter

Mouse

USB Calliope Mouse, Black

Expansion Slots

Three M.2 slots (one for WLAN, two for SSD)

Physical Locks

Kensington® Security Slot™, 3 x 7 mm

Optical

None

Bundled software

None

Memory slots

Two DDR5 SO-DIMM slots, dual-channel capable

Max Memory

Up to 64GB (2x 32GB DDR5 SO-DIMM)

Storage

512GB SSD M.2 2280 PCIe® 4.0x4 NVMe® Opal

Storage Support

Dual SSD mode: up to two drives, 2x M.2 SSD • M.2 2280 SSD up to 2TB

Audio Chip

High Definition (HD) Audio, Realtek® ALC233VB or Conexant CX11771 codec

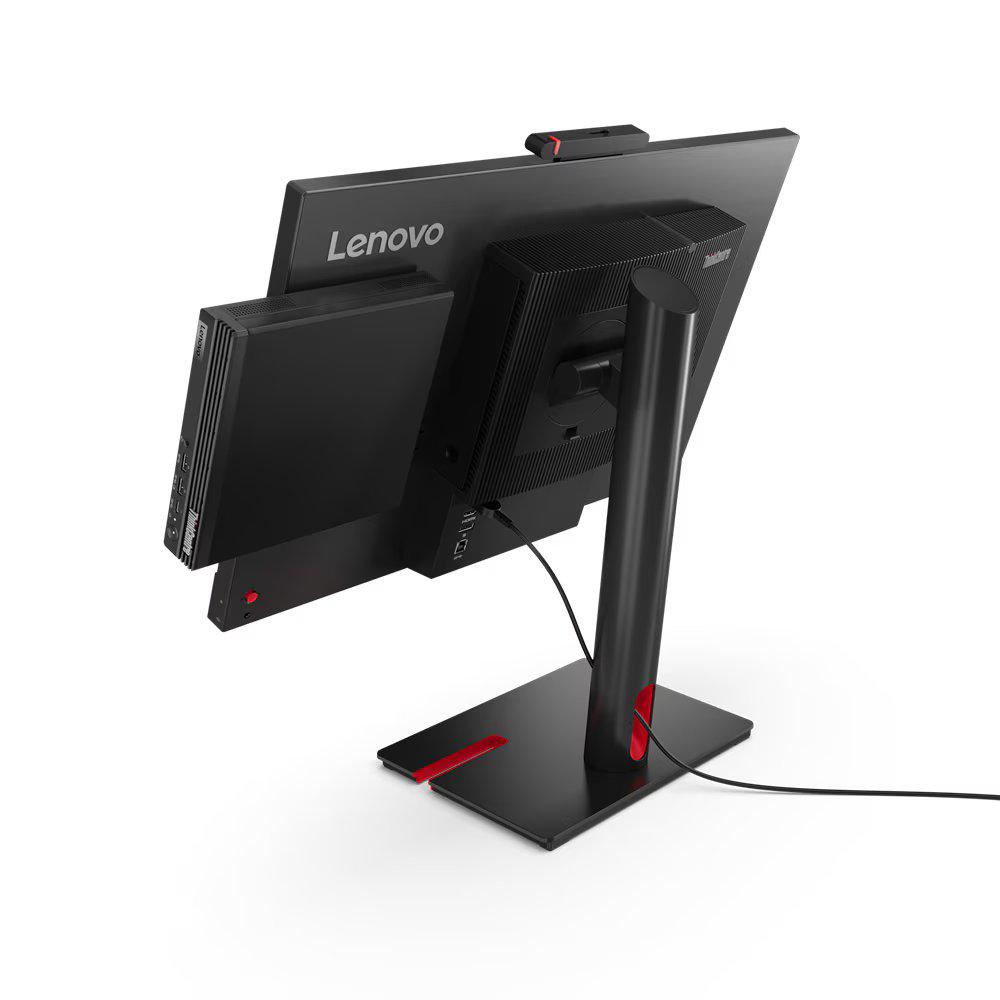

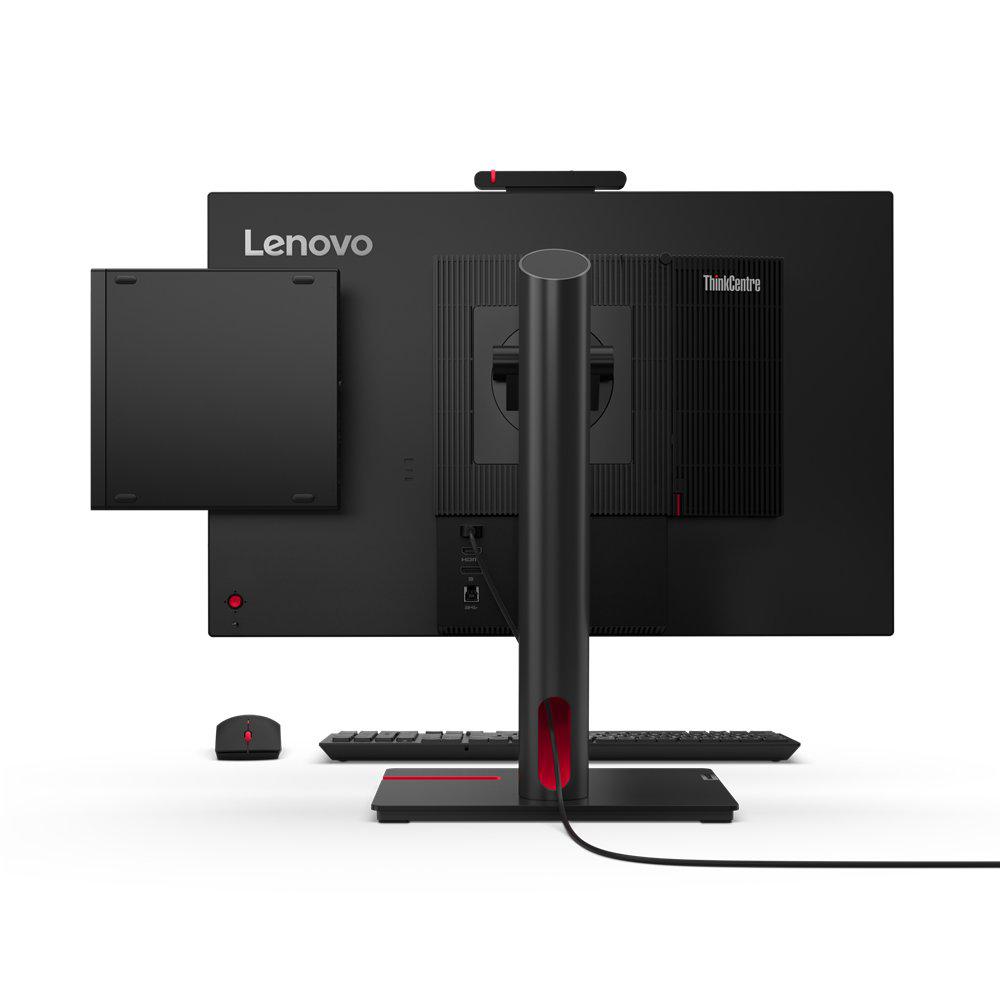

Mounting

VESA Mount

Dimensions (WxDxH)

179 x 182.9 x 36.5 mm with rubber feet (7.05 x 7.2 x 1.44 inches with rubber feet)

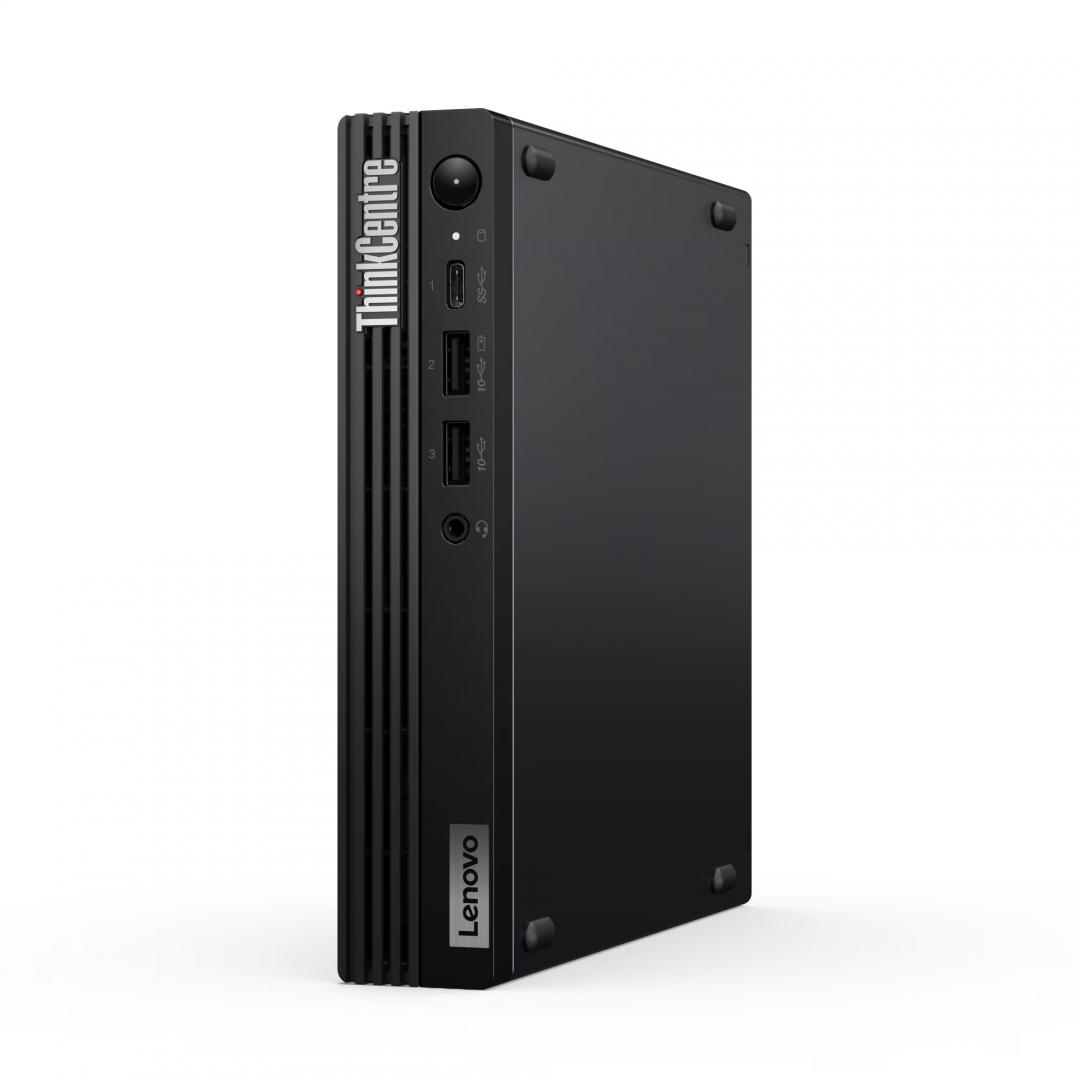

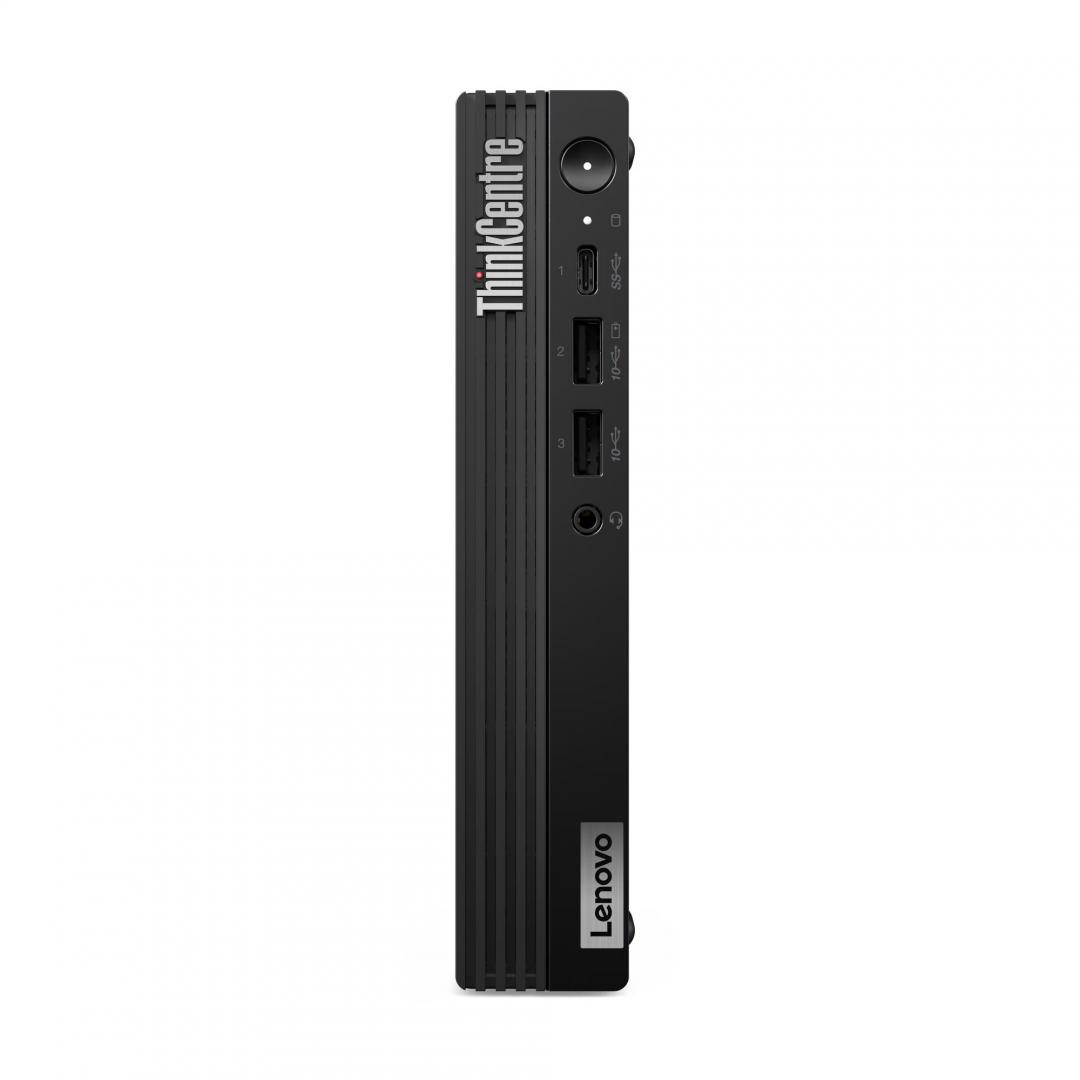

Front Ports

1x USB-C® (USB 5Gbps / USB 3.2 Gen 1), with [email protected] charging

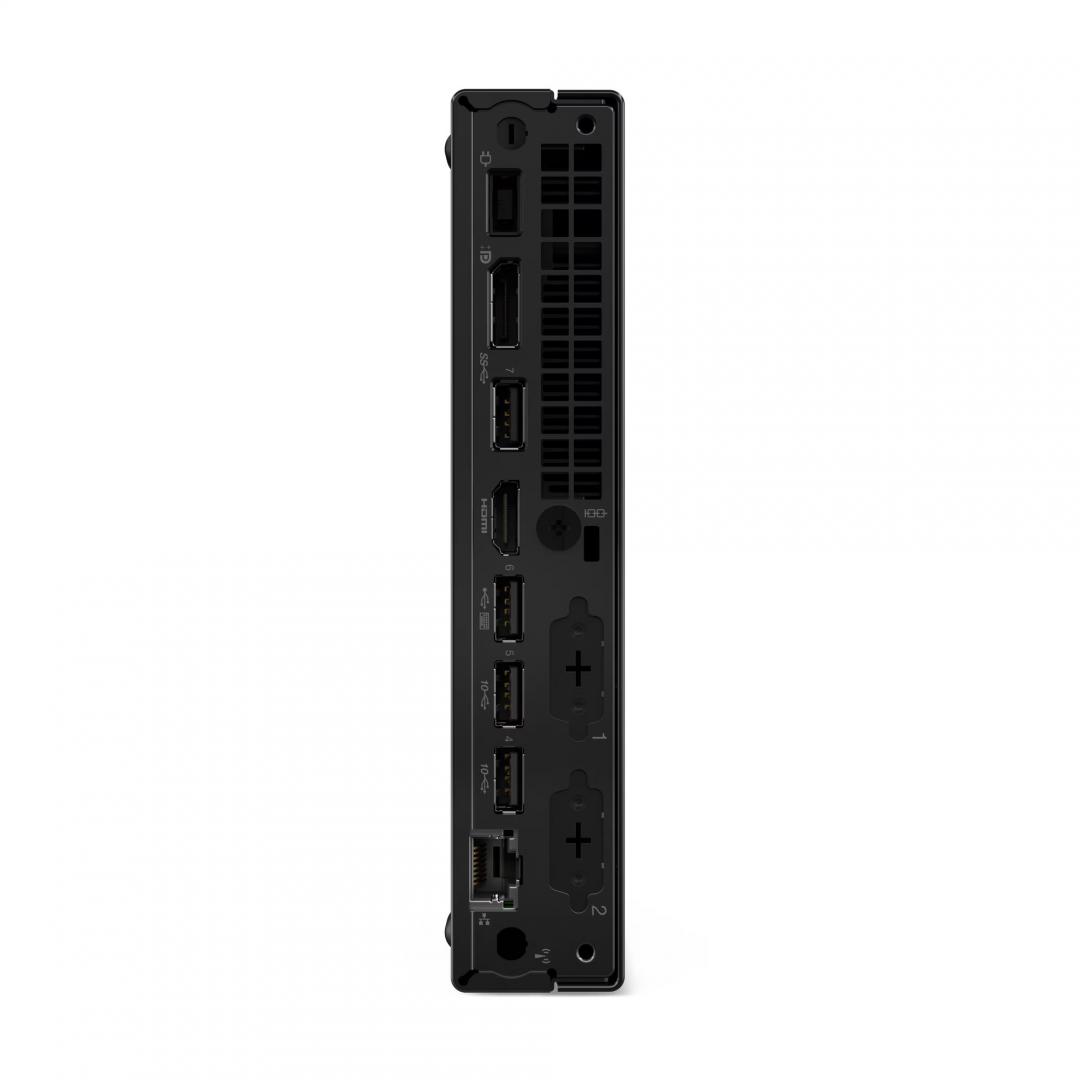

Rear Ports

1x USB-A (Hi-Speed USB / USB 2.0)

System Management

Non-vPro®

Processor

Intel® Core™ i5-14400T, 10C (6P + 4E) / 16T, P-core 1.5 / 4.5GHz, E-core 1.1 / 3.2GHz, 20MB

Security Chip

Discrete TPM 2.0, TCG certified

Base Warranty

1-year, Onsite

Operating System

None

Destinat pentru

Business

DT-CPU

Intel

Model-procesor

Intel-Core-i5

DT-Format

UFF
